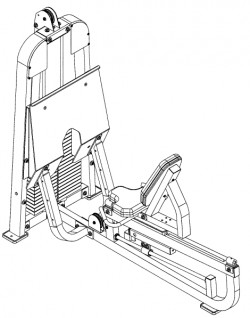

Hoist - Leg Press Toe Raises - HD 1600

Brand: Hoist
Category: Strength - Selectorized - Commercial
Model Name: Leg Press Toe Raises
Model Number: HD 1600

Exploded Diagrams

Catalog Number	Part Name	Special Notes
39000375	Pin, Adjustment, Short		$23.14 / each
39000250	Cable, Leg Press, 142"		$67.87 / each
39001449	Selector Pin		$27.25 / each
39000743	Nut, Locking		$3.08 / each
39001395	Screw		$5.14 / each
47000039	Washer		$1.05 / each
39001135	Connector, Pin		$24.68 / each
39000067	Bushing, Guide Rod		$9.25 / each
39001164	Connector		$3.70 / each
39000070	Lanyard		$12.34 / each
39000060	No Longer Available Spacer, Pulley
39000486	Endcap		$7.72 / each
39001437	Flat Washer		$3.88 / each
39001999	Seat		$59.64 / each
39001328	SPLIT LOCK WASHER		$3.88 / each
39000048	Washer, Flat		$1.80 / each
39000031	Weight Plate, Top 8.25 Lbs		$113.10 / each
39001791	1" Dia. Split Collars
39001928	1/2"-13UNC x 3" Hex Bolt (WZ)
39001473	20 LBS. INTERMEDIATE WEIGHT
39001932	3/8"-16UNC x 3/4" Square Head Set Screw
39000057	No Longer Available Block, Plastic
39000090	Bolt
39002122	Bumper
39000487	Elliptic Endcap SOmm x 7Smm
39000485	Endcap 50mm Sq.
39000062	Endcap. 1" Round		$4.11 / each
39002123	Frame Shield
39002110	Guide Rod
39001952	Mount, Top, Rod, Guide		$20.56 / each
39000748	Nut, Locking		$2.06 / each
39000301	Nut, Nylock		$1.59 / each
39001979	Protection Cover
39002112	Rear Upright
39001948	Rubber Foot Pad
39000054	RUBBER FOOT PAD
39000093	Screw
39000069	Standoff, Lanyard/Selector Pin
39002113	Weight Cage Top Mount
39002109	Weight Stack Mount
39001961	White Spacer
