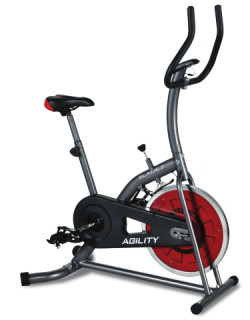

BladeZ - Agility

Agility -

Brand: BladeZ
Category: Stationary Bicycles - Indoor Cycles - Residential
Model Name: Agility

Exploded Diagrams

Entire Unit

	Catalog Number	Part Name	Special Notes
	62011885	End cap		$3.15 / each
	62020410	No Longer Available Front post
	62010131	Adjusting bolt		$2.07 / each
	62010296	Axle		$4.14 / each
	62019814	Ball Bearing		$5.22 / each
	62010431	Bearing		$6.57 / each
	62010656	Bolt		$0.54 / each
	62010657	Bolt		$1.08 / each
	62010736	Bottom Bracket Cup		$5.22 / each
	62010751	Brake bracket		$6.48 / each
	62010767	Brake limit		$1.08 / each
	62010838	Bushing		$0.54 / each
	62010839	Bushing		$0.54 / each
	62010840	Bushing		$5.22 / each
	62010841	Bushing		$1.62 / each
	62010969	Cap nut		$1.08 / each
	62010984	Carriage bolt		$1.08 / each
	62010985	Carriage bolt		$1.08 / each
	62011012	Chain		$8.00 / each
	62011095	Chain wheel		$8.88 / each
	62011246	Computer cable		$7.38 / each
	62011219	Console, Display		$26.95 / each
	62011630	Crank Hexagon Nut		$5.22 / each
	62011728	Curved washer		$1.08 / each
	62019536	Dome nut		$1.62 / each
	62011842	Emergency brake		$11.20 / each
	62011886	End cap		$2.70 / each
	62012042	Fixed gear		$7.92 / each
	62019164	Flat washer		$0.09 / each
	62012115	Flat washer		$0.18 / each
	62012116	Flat washer		$0.18 / each
	62012193	Flywheel		$116.60 / each
	62012478	Front stabilizer		$33.39 / each
	62012517	Gasket		$5.22 / each
	62020330	Handle bar		$16.80 / each
	62012962	Hex bolt		$1.08 / each
	62012963	Hex bolt		$1.08 / each
	62012964	Hex bolt		$1.08 / each
	62012965	Hex bolt		$2.07 / each
	62012984	Hex nut		$1.08 / each
	62012990	Hex nut (thin)		$1.08 / each
	62013243	Inner chain cover		$14.00 / each
	62013251	Inner hex bolt		$0.54 / each
	62013324	Knob		$1.89 / each
	62013492	Locking nut		$3.69 / each
	62013495	Locking nut(thin)		$3.15 / each
	62034633	Magnet		$5.22 / each
	62013952	Nylon nut		$0.54 / each
	62014022	Outer chain cover		$28.56 / each
	62014089	Pedal (L)		$11.68 / each
	62014100	Pedal (R)		$11.68 / each
	62014751	Rear stabilizer		$33.39 / each
	62015135	Screw		$0.54 / each
	62015136	Screw		$0.54 / each
	62015137	Screw		$0.54 / each
	62015138	Screw		$0.54 / each
	62015278	Seat		$25.76 / each
	62015330	Seat post		$58.24 / each
	62015609	Special washer		$2.70 / each
	62009194	Speed Sensor		$8.00 / each
	62015627	Spindle Sleeve A		$5.22 / each
	62015628	Spindle Sleeve B		$5.22 / each
	62015655	Spring		$2.07 / each
	62015702	Spring washer		$0.27 / each
	62015703	Spring washer		$0.09 / each
	62015749	Square nut		$1.08 / each
	62016240	Washer 38x 824 x 2.4t		$5.22 / each
