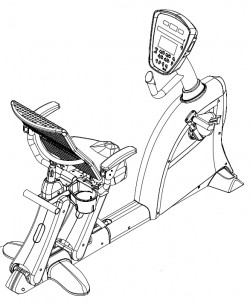

SportsArt - Bi-Directional Bike - C521M | Fitness and Exercise Equipment Repair Parts

Catalog Number	Part Name	Special Notes
38003211	Pedal, Set		$31.63 / pair
38004026	Seat bottom		$110.04 / each
38001391	Cord, Power		$23.18 / each
38004462	Nut, Flange		$6.32 / each
38000090	Bearing		$17.14 / each
38001797	Transmitter, HR		$79.93 / each
38013196	STATIONARY GRIP - COVER \|\| JA3		$14.01 / each Extended Back Order: it may be several months before we receive this part.
38000331	Bearing, Sealed		$22.00 / each
38006244	Screw, Phillips Head		$1.09 / each
38009372	SEAT BACK MESH \|\| MD6		$66.17 / each
38000686	Wire harness		$2.12 / each
38008261	No Longer Available Cushion, Arm Rest
38003271	Foot, Front		$11.35 / each
38000878	Locking Pin-Long		$13.79 / each
38008061	OVAL-SHAPED COVER		$17.10 / each
38006208	Screw		$1.63 / each
38006235	Screw		$6.08 / each
38006241	Screw		$1.24 / each
38004023	Seat axle bushing		$9.55 / each
38000863	Spring		$6.32 / each
38008260	Wire, Switch, Power		$5.85 / each
38013204	BASE FRAME COVER (SILVER) \|\| DD4		$36.35 / each
38013148	Belt, Drive		$13.74 / each
38013156	Belt, Drive		$20.23 / each
38008272	Cable		$23.29 / each
38008262	Cable, Spring, Gas		$13.97 / each
38013191	Crank, Assembly, Medical - On Sale!		$218.20 / each $152.74 / each
38004531	Cushion, Key, White		$2.33 / each
38015751	Board, Drive		$235.66 / each
38000862	BOLT CAP		$11.06 / each
38006319	CAP		$2.33 / each
38000966	Cover, Drive Assembly		$7.88 / each
38013202	FRAME COVER SET (SILVER) \|\| DE3		$50.59 / each
38004094	Gas spring cover		$4.84 / each
38013217	LEG COVER - LEFT (SILVER) \|\| DE3		$36.57 / each
38013218	LEG COVER - RIGHT (SILVER) \|\| CC2		$48.52 / each
38013141	Overlay, Display		$32.80 / each
38006253	PH SCREW M4P0.7L8		$6.08 / each Extended Back Order: it may be several months before we receive this part.
38004099	Pin - bottom of gas spring		$10.70 / each
38008268	Pulley, Idler		$53.95 / each
38008821	Pulley, Idler		$28.25 / each
38006226	Screw		$2.33 / each
38004112	Seat back bolt		$15.91 / each
38006308	SERR WASHER D18d8.5t2.0*19T		$2.08 / each
38006300	SPRING WASHER M8*t2.0		$5.83 / each
38013214	SUPPORT FRONT		$76.32 / each
38000819	Wire-Magnet To Drive Board		$13.79 / each
38013189	ADJUSTMENT KNOB \|\| JD4		$23.53 / each
38013181	ARMREST ASSEMBLY \|\| W - UG4		$124.44 / each
38013182	ARMREST AXLE
38013163	ARMREST BASE
38013162	ARMREST SUPPORT
38008248	Assembly, Idler		$20.42 / each
38013283	BASE FRAME COVER (GREY) \|\| CD1		$15.94 / each
38008258	Bearing, Ball		$5.99 / each
38013172	BELT WHEEL \|\| LI6		$43.16 / each
38013175	BELT WHEEL \|\| LI6		$44.02 / each
38013293	BOTTLE HOLDER (GREY) \|\| OE2		$14.40 / each
38013215	BOTTLE HOLDER (SILVER) \|\| DE3		$13.46 / each
38008146	Bottom, Seat		$62.94 / each
38013155	BUSHING \|\| JD3
38009359	BUSHING \|\| KB2		$1.98 / each
38008839	BUSHING \|\| NJ4		$1.98 / each
38013212	BUSHING+PIN SET \|\| W - IJ3		$8.97 / each
38006311	C-CLIP
38013184	Cable Assembly		$23.29 / each
38006174	CABLE CLIP		$2.54 / each
38008265	Cable Clip		$5.95 / each
38015280	CABLE HOLDER \|\| W - AA5		$1.74 / each
38004056	Clear PVC pad
38008259	Connector, Cord, Power		$10.11 / each
38008263	Console, Display		$443.88 / each
38008244	Cover, Display, Lower		$18.83 / each
38011039	No Longer Available CRANK ARM BODY - LEFT
38011038	No Longer Available CRANK ARM BODY - RIGHT
38013313	CRANK ARM COVER \|\| LJ6		$2.82 / each
38011051	CRANK ARM SET		$436.41 / each
38013187	No Longer Available CRANK SCREW COVER \|\| W - IL2
38013186	CRANK TOP COVER \|\| KH4		$5.10 / each
38008275	Crank, Medical, Crank		$67.14 / each
38008278	Crank, Medical, Crank		$67.14 / each
38011044	DISPLAY ASSEMBLY - COMPLETE (GREY)
38011046	DISPLAY BACK COVER (GREY)
38013166	DISPLAY BOARD \|\| JB3		$318.76 / each
38011045	DISPLAY FRONT & OVERLAY (GREY)
38013165	DISPLAY FRONT & OVERLAY (SILVER) \|\| DE1 EE4 AB2		$46.30 / each
38008264	DISPLAY LOWER COVER \|\| SC3
38013145	DISPLAY SUPPORT BRACKET
38013173	DRIVE BOARD \|\| JD2
38013171	DRIVE PULLEY - LEFT \|\| DD4
38000835	End Cap		$5.90 / each
38013154	FINGER GUARD
38006284	FLAT WASHER D15d5t1.0		$2.54 / each
38006287	FLAT WASHER D17d8t1.5		$2.33 / each
38006295	FLAT WASHER D20d6.3t1.5		$1.21 / each
38008059	FLAT WASHER D8d4t1.0		$1.02 / each
38013157	FLYWHEEL SUPPORT PLATE
38013174	FLYWHEEL \|\| AB1
38013277	FOOT COVER - LEFT (GREY) \|\| KC4 OB4		$7.21 / each
38013199	FOOT COVER - LEFT (SILVER) \|\| GD4		$5.36 / each
38013207	FOOT COVER - RIGHT (SILVER) \|\| GD4		$6.56 / each
38013281	FRAME COVER SET (GREY) \|\| BC2		$21.51 / each
38008862	FUSE - 1A 110V		$1.92 / each
38013803	FUSE HOLDER \|\| QB4		$7.17 / each
38004039	Gas spring cover
38013161	GAS SPRING \|\| JD5
38010761	GASKET - D20d12.2t0.5 \|\| W - QF13		$1.45 / each
38006354	GASKET D13*0.25~0.35		$1.24 / each
38007658	HANDLE		$14.33 / each
38008270	HARDWARE KIT \|\| FC2
38007015	HEX GROMMET M10		$1.74 / each
38007779	HEX NUT
38007011	HEX NUT M6		$1.33 / each
38008249	Hub, Pulley, Drive		$38.55 / each
38007785	INNER HEX SCREW		$1.47 / each
38007018	INNER HEX SCREW M5P0.8L10		$1.24 / each
38008166	INNER HEX SCREW M5P0.8L15 \|\| QF5
38006218	INNER HEX SCREW M6*L12		$1.24 / each
38013188	INNER HEX SCREW M6*L25
38013158	INNER HEX SCREW M8*L12
38013144	IPOD COVER
38013190	No Longer Available LEFT MEDICAL CRANK ASSEMBLY \|\| EE2
38013270	LEG COVER - LEFT (GREY) \|\| CD3 GD3		$48.29 / each
38008286	LEG COVER - R \|\| FI5		$48.29 / each
38011040	MAIN FRAME
38013250	MIDDLE SHROUD - UPPER \|\| DA4 FA1		$28.48 / each
38006238	MSHRM PH SCREW M4*L8		$2.54 / each
38006141	NEUTRAL WIRE STICKER		$2.33 / each
38006184	Nut		$1.33 / each
38013151	NYLON RIVET
38009329	O-RING		$1.69 / each
38013167	OPTIC SENSOR \|\| W - GL6		$24.14 / each
38013319	OVAL COVER \|\| KC5		$5.77 / each
38008243	OWNER'S MANUAL \|\| FK2
38008245	Pedestal		$55.95 / each
38013170	PEDESTAL ASSEMBLY
38004091	Pedestal collar
38013265	PEDESTAL COLLAR \|\| LI6		$4.65 / each
38006263	PH SCREW M4P0.7L12		$2.33 / each
38006260	PH SCREW M4P0.7L6		$2.54 / each
38006270	PH SCREW M5P0.8L15		$1.24 / each
38013149	PIN D25D20.5L16.9
38008276	Plate, Pedal, Set, Plate		$80.57 / each
38008277	Plate, Set, Pedal, Right		$80.57 / each
38000792	Plug, Handlebar		$5.10 / each
38007111	POWER SWITCH -GREEN		$6.45 / each
38013153	POWER SWITCH BRACKET
38013177	POWER SWITCH BRACKET Assembly-110V
38006407	PROGRAM BOARD		$56.92 / each
38008254	Pulley, Drive		$67.14 / each
38008266	Pulley, Idler		$25.04 / each
38010860	REAR COVER (GREY)
38013210	REAR COVER (SILVER) \|\| GD4		$6.79 / each
38013282	REAR LEG COVER (GREY) \|\| DA4		$15.36 / each
38013203	REAR LEG COVER (SILVER) \|\| FC2		$24.46 / each
38004145	Rear leveler		$5.13 / each
38008267	RIGHT DRIVE PULLEY WHEEL Assembly \|\| SB3		$36.42 / each
38008269	RIGHT SIDE FRONT FOOT COVER \|\| UF4 UE3
38008251	Ring, C		$1.04 / each
38006378	ROUND STICKER D18*t0.25		$4.65 / each
38006274	Screw		$2.54 / each
38006192	Screw		$1.35 / each
38006210	Screw		$1.21 / each
38007020	Screw		$1.47 / each
38006259	Screw		$1.24 / each
38009131	SCREW - B/H (M6P1.0L35)		$2.20 / each
38009060	SCREW - B/P (M4P0.7L12)		$1.06 / each
38009063	SCREW - B/P (M6P1.0L12)		$1.02 / each
38007419	SCREW M50.8L12
38006177	SCREW SOCKET		$2.33 / each
38013180	SEAT BACK FRAME ASSEMBLY
38013185	SEAT BACK GAS SPRING ASSEMBLY
38013183	SEAT BACK GAS SPRING Assembly COMP
38013286	SEAT BACK SHOCK \|\| MF5		$48.29 / each
38008274	SEAT CARRIAGE \|\| TB2
38008273	SEAT GAS SPRING ASSEMBLY		$85.15 / each
38008271	SEAT GAS SPRING Assembly COMPLETE \|\| SC3		$81.14 / each
38013291	SEAT SUPPORT FRONT		$55.92 / each
38013292	SEAT SUPPORT REAR		$55.92 / each
38006309	SERRATED WASHER D18d8.5T2.0		$1.47 / each
38013287	SHOCK COVER (GREY) \|\| LI2		$4.65 / each
38011048	SIDE COVER & FOOT - LEFT (GREY)
38013169	SIDE COVER & FOOT - LEFT (SILVER) \|\| DE1 FA3		$472.21 / each
38011049	SIDE COVER & FOOT - RIGHT (GREY)
38011047	SIDE COVER - LEFT (GREY) \|\| AD2
38013168	SIDE COVER - LEFT (SILVER) \|\| DE1 AD2		$43.52 / each
38009436	SIDE COVER - RAW - LEFT \|\| FB1
38009438	SIDE COVER - RAW - RIGHT \|\| FB1
38011050	SIDE COVER - RIGHT (GREY) \|\| AD2
38013179	SIDE COVER - RIGHT (SILVER) \|\| AD2 DE1		$43.52 / each
38008252	Spindle		$72.80 / each
38008255	Spindle		$25.78 / each
38013178	SPINDLE/DRIVE PULLEY ASSEMBLY
38013152	SPRING		$6.15 / each
38013159	SPRING WASHER		$0.99 / each
38007791	SPRING WASHER		$1.21 / each
38008899	STICKER - FUSE 1A 110V		$1.04 / each
38008885	STICKER - MADE IN TAIWAN		$1.06 / each
38008887	STICKER - PATENT		$1.21 / each
38009492	STICKER - SPEED SENSOR		$6.15 / each
38008907	STICKER - SPORTSART		$5.27 / each
38006140	Sticker, Ground Wire		$4.65 / each
38006147	Sticker, Right		$1.24 / each
38006146	STICKER-LEFT		$1.24 / each
38013213	SUPPORT REAR \|\| W - SA3		$65.01 / each
38008921	TAPE - DOUBLE SIDED		$1.21 / each
38006491	TELEMETRY HR RECEIVER BRD		$53.88 / each
38000599	Tool - Crank arm puller		$15.86 / each
38013164	TRANSFORMER - 110V \|\| NE1		$92.07 / each
38013176	TRANSPORT WHEEL AXLE ASSEMBLY \|\| KA2		$5.10 / each
38013195	UPPER COVER \|\| DD4 RA3		$44.27 / each
38013143	USB COVER
38010386	WASHER - (D26D10.3T3.0)		$1.69 / each
38009269	WASHER - F (D17D8T2.0)		$1.69 / each
38009171	WASHER - W (D17*D12) \|\| MC4		$1.21 / each
38008052	WASHER D22d8.5t3.0		$1.45 / each
38006280	Washer, Flat		$3.33 / each
38008620	Washer, Spring		$1.03 / each
38013150	WAVE WASHER		$1.21 / each
38008250	Wheel, Drive Pulley		$35.42 / each
38008257	Wheel, Pulley Idler		$21.73 / each
38008253	Wheel, Transport		$6.30 / each
38008247	Wire		$26.08 / each
38013147	WIRE - INT BOARD>DRIVE BOARD \|\| W - GL6		$5.03 / each
38015867	Wire harness		$13.79 / each
38008246	Wire, Display, Pedestal		$25.72 / each
38008256	Wire, Sensor, Temperature		$13.08 / each
38013146	Wire, Transformer		$14.26 / each
38006168	ZIP TIE		$1.24 / each
