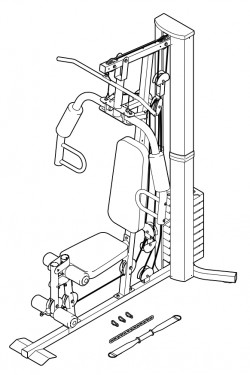

Weider - XRS 50 - WESY246180 | Fitness and Exercise Equipment Repair Parts

Catalog Number	Part Name	Special Notes
6010805	Pulley, Cable		$63.46 / each
6001077	Endcap, Round, Internal		$2.87 / each
6087910	Strap, Handle		$35.63 / each
6057171	Nut, Nylock Hex		$2.15 / each
6043892	Pad, Roller		$25.72 / each
6040560	Endcap, Mushroom, Internal		$5.12 / each
6057447	Nut, Locking		$2.77 / each
6083059	Washer, Flat		$1.46 / each
6008180	Pulley		$41.40 / each Extended Back Order: it may be several months before we receive this part.
6088012	Cable assembly, 109.5		$54.51 / each
6003649	Washer, Flat		$2.35 / each
6001249	No Longer Available Endcap, Round, Internal, Cone
6032005	Spacer		$5.70 / each
6037382	Guard, Finger, Half		$10.39 / each
6023396	Screw		$2.62 / each
6019217	Pin, Adjustment		$15.08 / each
6033172	Cable Assembly, 89.5"		$85.97 / each
6063835	Pulley		$67.18 / each
6034717	Bumper, Step		$19.27 / each
6019664	Pin, Locking		$23.75 / each
6052276	Pin, Weight Selector		$20.23 / each
6005645	Chain		$19.06 / each
6075667	Cable assembly, 128		$65.51 / each
6034103	Bushing		$13.40 / each
6023040	Bumper, Weight		$22.02 / each
6022684	Bracket, Trap		$9.22 / each Extended Back Order: it may be several months before we receive this part.
6031702	Guard, Finger		$25.00 / each
6072046	Endcap, Round, Internal		$5.74 / each
6025127	Screw		$2.85 / each
6029654	Screw		$2.17 / each
6022334	Screw		$10.72 / each
6075660	UPPER WEIGHT GUIDE		$80.56 / each
6019136	Weight, Plate, 12.5lb		$120.61 / each
6004979	Screw		$12.91 / each
6023099	Screw		$3.90 / each
6060046	Foot, Base		$4.87 / each
6034409	Grip, Hand		$22.21 / each
6074989	No Longer Available Pin, Arm
6035064	Screw		$1.43 / each
6028768	Screw		$5.06 / each
6010552	Endcap, Square, Internal		$11.38 / each
6075665	Hook, Cable		$57.21 / each
6023002	Washer, Flat		$14.07 / each
6013966	Endcap, Round, Internal		$9.22 / each
6075662	LOWER WEIGHT GUIDE		$76.17 / each
6002339	Screw		$12.95 / each
6002392	Screw		$12.43 / each
6072028	Nut		$5.34 / each
6044603	No Longer Available Lock
6045800	Bolt		$23.33 / each
6109005	PIVOT FRAME		$141.91 / each
6001963	Screw		$21.39 / each
6109071	WEIGHT SELECTOR		$60.27 / each
6088020	Screw		$8.61 / each
6040495	Bolt		$5.11 / each
6038837	Endcap, Square, External		$13.40 / each
6025671	Screw		$7.07 / each
6075669	10MM SPACER		$19.98 / each
6034303	Screw		$4.50 / each
6108952	DOUBLE U-BRACKET		$22.28 / each
6108994	Lock Plate		$14.25 / each
6109037	U-BRACKET		$25.53 / each
6000754	BOLT,CARRIAGE,ZP,M10-1.5X62MM		$17.31 / each
6108928	CABLE PIVOT		$8.40 / each
6108917	BACKREST		$140.89 / each
6056805	BAR,PULL,BENT,36"L		$136.09 / each
6108923	BASE		$212.69 / each
6075658	BASE FOOT		$4.09 / each
6108956	FRONT BASE		$139.64 / each
6108957	FRONT LEG		$139.62 / each
6108959	HANDLE		$45.65 / each
6108970	LEFT ARM		$145.90 / each
6108972	LEFT LOWER SHROUD		$84.46 / each
6108976	LEFT UPPER SHROUD		$127.46 / each
6108981	LEG LEVER		$122.43 / each
6108995	LOWER UPRIGHT		$183.98 / each
6084114	M8 X 50MM SHOULDER BOLT		$11.73 / each
6101510	M8 X 58MM CARRIAGE BOLT		$4.92 / each
6025864	Pad, Foam		$56.55 / each
6101008	Pad, Wedge		$67.36 / each
6035413	Plate, Square		$17.62 / each
6109015	RIGHT ARM		$145.90 / each
6109017	RIGHT LOWER SHROUD		$84.46 / each
6109021	RIGHT UPPER SHROUD		$127.46 / each
6001833	Screw		$8.82 / each
6094027	Screw		$5.17 / each
6029016	SCREW,PHTHMS,BZP,M6-1.0		$4.69 / each
6109025	SEAT FRAME		$124.38 / each
6109026	SHROUD CONNECTOR		$21.02 / each
6109027	SHROUD COVER		$35.45 / each
6109030	STABILIZER		$153.87 / each
6109035	TOP FRAME		$147.67 / each
6100648	Tube, Pad, Short		$24.18 / each
6109038	UPPER UPRIGHT		$201.03 / each
