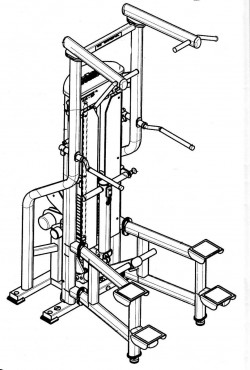

Paramount - Chin Dip - XP 4000

Chin Dip - XP 4000 -

Brand: Paramount
Category: Strength - Selectorized - Commercial
Model Name: Chin Dip
Model Number: XP 4000

Exploded Diagrams

Parts that are not yet classified will display after matching classified parts if any attributes are selected.

Filter List:



Catalog Number

Part Name

Special Notes
18000102 - Pin, Selector - Product Image

18000102

Pin, Selector

$40.97 / each
18000619 - Pin, Adjustment - Product Image

18000619

Pin, Adjustment

$116.42 / each
18000097 - Foot - Product Image

18000097

Foot

$11.92 / each
18001792 - Plug, End - Product Image

18001792

Plug, End

$7.94 / each
18000256 - Washer - Product Image

18000256

Washer

$2.68 / each
18000151 - Nut, Locking - Product Image

18000151

Nut, Locking

$1.94 / each
18000430 - Cap, Bolt Cover 3/8 - Product Image

18000430

Cap, Bolt Cover 3/8

$1.26 / each
18000647 - Bumper, Weight Stack - Product Image

18000647

Bumper, Weight Stack

$9.02 / each
18000404 - End Cap 2 x 3 - Product Image

18000404

End Cap 2 x 3

$3.86 / each
18000649 - Pulley, Cable, 4 1/2" - Product Image

18000649

Pulley, Cable, 4 1/2"

$20.62 / each
18000123 - Screw - Product Image

18000123

Screw

$3.88 / each
18000648 - Cap - Product Image

18000648

Cap

$3.88 / each
18000157 - Bearing, Sealed - Product Image

18000157

Bearing, Sealed

$19.40 / each
18000767 - BRACKET, GUIDE ROD, 5" - Product Image

18000767

BRACKET, GUIDE ROD, 5"

$7.28 / each
18000306 - Nut, Locking - Product Image

18000306

Nut, Locking

$1.26 / each
18000296 - Screw - Product Image

18000296

Screw

$1.84 / each
18000252 - Screw - Product Image

18000252

Screw

$1.75 / each
18000313 - Screw - Product Image

18000313

Screw

$6.34 / each


18002209

6" Pulley



18000101

Bar, Selector

$307.20 / each


18000642

BAR, SELECTOR, 16 + 1



18000156

BASE, BOLT COVER, 3/8



18000688

BHCS 1/2 - 13



18000705

Bushing, Flange



18000704

BUSHING, FLANGED, 1" I.D.



18000762

CABLE ADJ BOLT



18000645

CAP PLATE 5" CNTR



18000170

COLLAR CLAMPING, 1" I,D.

$22.47 / each


18000640

COLLAR, 1"



18000639

COLLAR, SLEEVE



18002468

End Cap 3"



18000756

END CAP, OBROUND



18000576

GUIDE ROD



18000108

HOLE PLUG 1" Dia



18000613

HOLE PLUG, 3/8" DIAMETER



18000678

INSERT



18000155

INSERT Threaded 3/8-16



18000620

Knob, Bar

$11.35 / each


18000111

LABEL MAINTENANCE SCHEDULE



18000754

LABEL, DOOMED TRIANGLE



18000617

LABEL, MADE IN USA LABEL



18000098

No Longer Available Label, Serial Number



18000695

NON SKID



18000890

Pin

$1.94 / each


18000694

PIN 5/16 X 1.5



18000621

Pin, Connector

$13.34 / each


18000436

PIN, ROLL, 1/4 X 1-1/4



18000752

PLATE, 15#, 5" CL. W/ BUSHING



18000930

Plate, Upright Cover

$21.24 / each


18000372

Plate, Upright Cover

$39.38 / each


18002078

Plug



18000114

PLUG DOME 3/4 HOLE BLACK



18000865

Plug, Round Tube

$5.82 / each


18000158

RING M.H.D, RETAINING 2.440" HOUSING BORE



18000257

Rubber Bumper

$13.34 / each


18001300

Screw Hex 3/8-16 X 3 3/4



18001401

Screw TR. HD 10-32 x 3/4



18000423

SCREW, 1/4-14 X 1/2", THRD FORMING



18000667

SCREW, BHCS, 3/8-16 X 1, SS



18000425

SCREW, PHILLIPS, 10-32 ST



18000424

SCREW, TR.HD 1/4-20 X 2-1/2



18002308

Shim



18000578

No Longer Available Sleeve, Guide Rod



18000622

Spring, Pin

$3.88 / each


18002460

Stack Label



18000625

WARNING LABEL



18000445

WASHER



18000671

WASHER, LOCK, 3/8, 18-8 SS



18000637

WT. BUSHING
