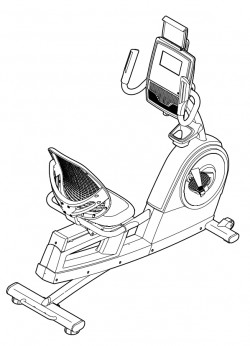

Proform - 440 ES - PFEX159171 | Fitness and Exercise Equipment Repair Parts

Catalog Number	Part Name	Special Notes
6022330	Motor, Resistance		$96.54 / each
6057171	Nut, Nylock Hex		$2.15 / each
6063836	Wheel		$4.44 / each
6077646	Adapter, DC		$51.87 / each
6010693	Retainer, External		$4.85 / each
6003551	Bearing, Sealed		$21.57 / each
6057589	Washer, Flat		$1.55 / each
6000441	Magnet		$1.94 / each
6000241	Washer, Flat		$2.02 / each
6058020	Wire harness, Power		$32.91 / each
6057447	Nut, Locking		$2.77 / each
6008778	Bumper, Leveler		$2.35 / each
6000294	Washer, Lock		$2.43 / each
6000151	Screw		$1.26 / each
6088015	Screw		$2.37 / each
6002008	Screw		$1.55 / each
6093396	Arm, Crank, Left		$85.79 / each
6075108	Screw		$5.06 / each
6093373	Eddy Mechanism		$134.92 / each
6044279	Screw		$2.60 / each
6002442	Tinnerman Clip		$1.54 / each
6093395	Arm, Crank, Right		$82.65 / each
6094025	Tablet Holder		$76.25 / each
6007430	Belt, Drive		$116.84 / each
6078223	Washer		$1.79 / each
6000237	Washer		$1.21 / each
6044353	Pulley		$72.31 / each
6072883	Cable, Resistance		$20.52 / each
6028868	Screw		$5.97 / each
6074702	Wire Harness		$11.73 / each
6023489	Nut, Flange		$4.19 / each
6075047	Screw		$1.44 / each
6075453	Nut		$1.79 / each
6093371	Pedal, Right		$57.28 / each
6093372	Pedal, Left		$57.28 / each
6093359	Tray, Accessory		$23.12 / each
6093479	REED SWITCH/WIRE		$18.99 / each
6012517	Screw		$1.16 / each
6053547	Screw		$13.01 / each
6044496	Screw		$4.58 / each
6052799	Stop Block, Seat Cam		$9.18 / each
6076783	Locknut		$2.60 / each
6044031	Screw		$1.58 / each
6074142	End Cap, Stabilizer, Rear		$13.98 / each
6083315	Washer, Pedal Adjust		$2.44 / each
6005387	No Longer Available Mat, Floor
6063595	Wrench		$7.48 / each
6043789	Screw		$1.43 / each
6063645	Tool, Assembly		$5.63 / each
6003623	Tool, Pliers, Snap ring		$126.52 / each
6093365	Cover, Bracket, Upper		$15.36 / each
6012095	Decal, Warning		$3.24 / each
6093381	Roller, Upper		$4.44 / each
6045874	Screw		$16.20 / each
6018508	Screw		$6.17 / each
6063887	Wire tie		$1.62 / each
6064108	Wrench, Allen		$10.39 / each
6080403	Backrest		$162.97 / each
6074777	Screw		$1.41 / each
6092597	Clamp		$2.95 / each
6030378	Nut		$5.37 / each
6084906	Screw		$1.29 / each
6052489	Screw		$4.09 / each
6041322	Screw		$1.69 / each
6080404	Seat		$192.49 / each
6093375	Wire Harness, Main		$32.80 / each
6093383	Axle		$6.34 / each
6081185	Axle, Handlebar		$21.20 / each
6093397	CRANK		$32.97 / each
6096626	CRANK ARM COVER		$22.90 / each
6093393	Handgrip, Seat, Left		$22.33 / each
6093392	Handgrip, Seat, Right		$22.33 / each
6093382	Roller, Lower		$1.81 / each
6042129	Screw		$11.39 / each
6062945	Screw, Patch		$3.90 / each
6093355	Sensor, Pulse, Left		$68.25 / each
6058691	#8 X 1" SCREW		$2.04 / each
6103301	ADJUSTMENT KNOB		$37.90 / each
6069085	Bolt		$11.38 / each
6087764	Bracket, Handle		$21.50 / each
6101310	Bracket, Tray, Accessory		$10.37 / each
6103287	BRAKE		$20.54 / each
6081184	Bushing, Handlebar		$6.15 / each
6081186	Bushing, Upright		$9.22 / each
6103293	CONSOLE		$209.31 / each
6103299	CONSOLE BRACKET		$48.19 / each
6093385	Cover, Bracket, Lower		$13.74 / each
6103298	CRANK COVER		$2.04 / each
6048142	Decal, General Warning		$2.99 / each
6075574	DECAL,REWRK,5-IN-1 SHEET		$68.99 / each
6075575	DECAL,REWRK,OVRLY SHEET		$48.33 / each
6093398	End Cap, Frame		$6.34 / each
6093399	End Cap, Stabilizer, Front		$9.52 / each
6103289	FRONT RAIL COVER		$8.28 / each
6104066	FRONT STABILIZER		$78.89 / each
6077093	Grommet, Rectangle		$6.15 / each
6093374	Idler		$22.63 / each
6103283	LEFT HANDLEBAR		$31.39 / each
6103295	LEFT SHIELD		$54.54 / each
6067173	LEVELING FOOT		$22.37 / each
6093420	LOCK RING		$18.92 / each
6101004	M5 X 21MM SCREW		$1.17 / each
6093394	Nut		$4.23 / each
6086151	OPTIONAL CHEST PULSE ACC		$106.98 / each
6038304	Pad, Frame		$8.88 / each
6102692	RAIL		$74.95 / each
6103290	REAR RAIL COVER		$8.28 / each
6103282	REAR STABILIZER		$65.17 / each
6103284	RIGHT HANDLEBAR		$31.39 / each
6103852	RIGHT PULSE WIRE		$25.72 / each
6103296	RIGHT SHIELD		$55.06 / each
6087992	Screw		$5.06 / each
6078817	Screw		$2.95 / each
6093377	Screw, Idler		$5.38 / each
6081187	Screw, Shoulder		$1.58 / each
6103285	SEAT CARRIAGE		$47.51 / each
6103291	SEAT HANDLE		$58.48 / each
6103288	SEAT HANDLEBAR		$21.97 / each
6103286	SEAT LEVER		$17.84 / each
6093357	Sensor, Pulse, Right		$68.25 / each
6093378	Shield, Rear, Left		$54.24 / each
6093376	Shield, Rear, Right		$54.24 / each
6060324	Spacer, Brake		$1.79 / each
6103294	UPRIGHT		$58.48 / each
6103300	UPRIGHT BRACKET		$31.55 / each
6103297	UPRIGHT COVER		$39.10 / each
6103612	USER'S MANUAL		$19.44 / each
6093356	Wire Harness, Pulse, Left		$13.12 / each
6093358	Wire Harness, Pulse, Right		$13.12 / each
